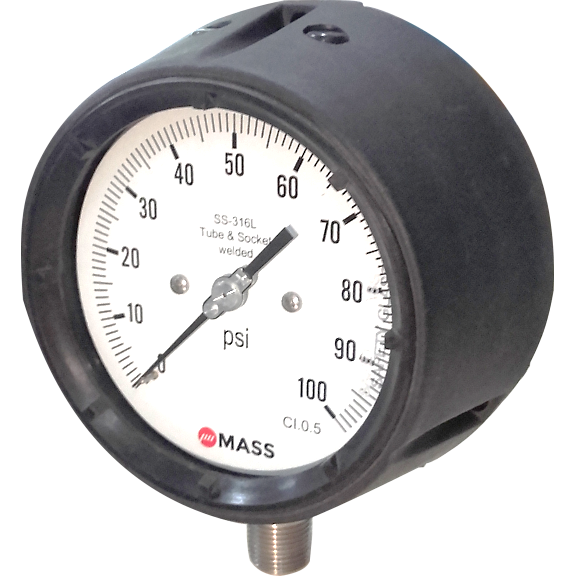

WPP Solid Front Process Pressure Gauge


Datasheet

Specification :
Description WPP, Solid Front Process Pressure Gauge
Features Rugged Thermoplastic case
Safe with Solid-front case design
Protection IP65
Usable to full scale
Overload protection 130 %e
Dry, liquid filled
Measuring system Stainless Steel or Monel
Size 115mm
Accuracy Grade 2A 0.5% (ASME B40.100)
Range Vac to 2500 bar, Vac to 36000 psi
Wetted Material: SS316, SS316L, Monel
Application Chemical & petrochemical industry, refineries, fertilizer plants, thermal & nuclear power generation, etc.

All Weatherproof models start with suffix "WP".  Follow decodification sheet for details.
