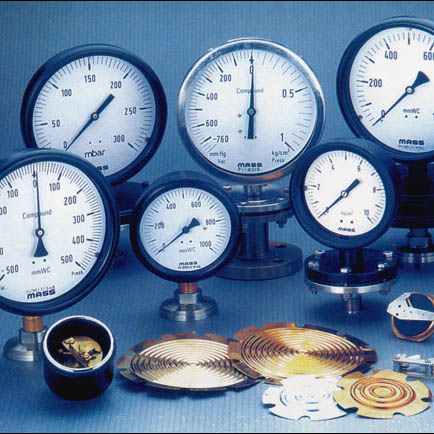

| Low Pressure Diaphragm & Capsule Gauges |
 |
Diaphragm gauges are suitable for measuring pressure of all kind of fluid and gaseous medium. The measuring element is a sensitive corrugated diaphragm fixed between two flanges. For slurry and viscous liquids flanged connections can also be incorporated. Low Pressure Bellow Capsule Gauge are designed for non-corrosive and non-aggresive application.
These Gauges have bellow capsule which is composed of two corrugated metal discs of Brass / Stainless Steel joined by brazing / argon arc welding. A rise pressure will cause the corrugated Capsule / Diaphragms to expand and this motion is transferred to the indicator through sector, pinion movement mechanism. A similar type of low pressure built-in capsule gauge can also be offered having almost similar kind of mechanism. |
|
| |
| Specification : |
| Dial size |
100mm, & 150mm |
| Accuracy |
11.5% and+2% of the f.s.d. |
| Element |
Diaphragm / Capsule |
| Element material |
Capsule: Brass/S.S.316
Diaphragm:S.S.316 / Teflon or Silver protected. |
| Socket material |
Brass / Stainless Steel |
| Movement material |
Brass / S.S.304/S.S.316 |
| Lower Chamber |
Carbon Steel/SS 304/SS 316/ Any Spacial material (Only for diaphragm gauge) |
| Case & Bezel |
Die Cast Aluminium Weatherproof housing, with screwed outer bezel, stoved enamel black finish. M.S. Powder coated or 304 SS snap action bayonet type. |
| Connection |
3/8M/2-BSP/NPT.
T type flanges & Direct Flanges.
As per ASA, ANSI, BS & DIN Standard. |
| Flange material |
Carbon Steel / SS 304 / SS 316 / any spacial material / Polyproplene/Teflon/PVC |
| Window |
Glass / Toughened Glass / safety glass |
| Optional Features |
Special graduation and range on dial, other thread connection and anti-corrosive epoxy coated black paint can be provided. |
| Range |
-760 mmHg Vaccum and up to 21 Kg/sq.cm for diaphragm type " D " model & from 250mmwcUpto 10,000 mmwc for low pressure diaphragm type " LPD " model. |
|
| |
| Specifications For Compact Capsule : |
| Dial size |
65mm, 100mm, 150mm |
| Accuracy |
+ - 2% of f.s.d. |
| Element Capsule |
Phosphor Bronze / S.S. 316 |
| Movement |
Brass / S.S. 304 |
| Socket |
Brass/S.S. 316 |
| Case & Bezel |
Stainless Steel / Mild Steel with powder coated. |
| Connection |
Standard |
| Window |
Standard |
| Ranges |
60 mmWC up to 6000 m.mWC |
|
All Low Pressure Diaphragm models start with suffix" LPD ", Diaphragm type model start with suffix 11 D " and Compact Capsule type model start with suffix " CC " Follow decodification sheet for details. |
| |
