Bi-Metal Temperature Guages

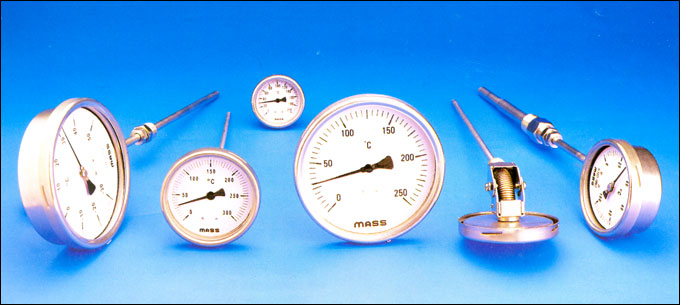

'MASS' make Bi-metal temperature gauges have a helically wounded coil of selected materials, which are properly
heat treated and coated with a viscous silicon for long term stability, minimize pointer oscillation and improve a
temperature transmission. Bi-metal thermometers enable to measure temperature from 50°C to 500°C with an
accuracy class of 2% of full scale.

'MASS' make Bi-metal standard temperature gauges are economical, rugged, reliable temperature measuring
instruments available in different dial sizes, connection & mounting. Bi-metallic temperature gauges are also
available with different type of accessories like Electrical contact and with thermowells as per process
requirements.

'MASS' make Bi-metal temperature gauges are widely used in Pulp and Paper Industries, Food and Beverage
Industries, Machine & Apparatus Constructions, Chemicals, Petrochemicals, Fertilizers, Refineries,
Pharmaceuticals, Thermal Power Station and Refrigeration application.

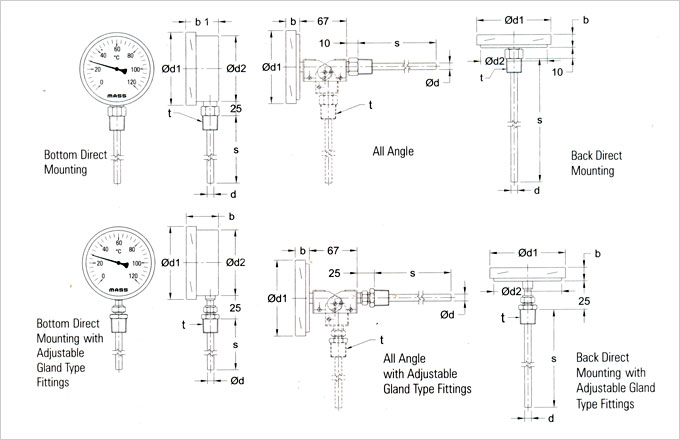

DIAL SIZE

Ød

Ød1

Ød2

 b T S
Bottom Connection Back Connection &
All Angle

63 mm

10

68.5

61.5

48.5

13.0

1/2" NPT or BSP



100 mm

10

109

98.5

48.5

18.0

1/2" NPT or BSP



115 mm

10

126.5

114.5

48.5

18.0

1/2" NPT or BSP



150 mm

10

166

151

48.5

18.0

1/2" NPT or BSP



Specification :
Dial Size 65mm, 100mm, 115mm & 150mm
Accuracy + 2% of full scale
Temperature Element Wounded coil of Bi-metal
Case M.S. / SS 304 snap action bayonet type IP 65
Stem & Bulb ANSI SS 316/SS316L
Stem Length 100mm to 1000mm
Stem Material SS 316
Joints Argon arc / Gas welded
Pointer Aluminum / Brass Black painted
Window Plain / Toughened / Shatter proof glass
Process Connection 1/2" NPT / BSP adjustable SS 316
Mounting Bottom, Back and Every angle
Ranges in °C 0 - 50 to 500, -50 to 500 & other compound ranges. Range in °F & scale on request.
